AI-WSZF600 trinocular high-definition stereo fluorescence microscope
Retail Price
Market price
Weight
kg
Stock surplus
隐藏域元素占位
- Product Description
-
- Commodity name: AI-WSZF600 trinocular high-definition stereo fluorescence microscope
The AI-WSZF600 trinocular stereoscopic fluorescence microscope is an optical instrument with continuously adjustable magnification, which is upgraded and modified on the basis of the continuous variable magnification stereoscopic microscope. The fluorescence excitation module is added to realize the two functional modules of fluorescence and stereoscopic observation. The continuous variable magnification microscope is an optical instrument with continuously adjustable magnification to form a positive stereoscopic image., Equipped with long working distance imaging system and large field of view eyepiece, it can provide excellent optical and mechanical operation performance, and is an important tool for medical and biochemical genetics research. It can also be used for product inspection in precision manufacturing and electronics industries, as well as for related teaching and experimental research in various colleges and universities.
The instrument is equipped with a fluorescence device, can be epifluorescence observation, its operation is based on the above-mentioned bright field observation after the correct adjustment, can be observed by the fluorescence device. The epifluorescence illuminator is divided"G (green), B (blue) V (purple) UV (ultraviolet)" four-color ED fluorescence excitation components, when used, should be reasonably selected according to the observed sample or fluorescent pigment, in order to achieve good fluorescence microscopic observation function.
■ Performance characteristics:
1. Adopt excellent optical system to provide excellent ortho-stereoscopic imaging observation 2. With wide zoom ratio, free and continuous zoom observation, long working distance, clear imaging, and wide field of view.
3. Full use of ED light source illumination/fluorescence excitation, strong illumination, long life, bright imaging and high contrast.
4. coarse/fine synchronous focusing mechanism, accurate and convenient focusing operation 5. with digital imaging interface, can be equipped with microscope camera or flat camera, capture image or video processing analysis, etc..
■ Product parameters:
fluorescence parameter excitation filter set
Type
excitation light wavelength
cut-off wavelength
ultraviolet light (UV)
330nm~380nm
420nm
purple light (V)
380nm~415nm
475nm
Blu-ray(B)
420nm~490nm
520nm
green light(G)
490nm~550nm
590nm
optical parameters
Total magnification
7X ~ 63X (standard configuration)
eyepiece
flat field of view large field of view eyepiece
WF10X, 22mm in FOV
trinocular
Hinge three eyes, observation angle45 degrees, interpupillary distance 48~75mm, left and right eyepiece tubes have visual adjustment, adjustment range -5~5
optical system technology
Total Magnification:7-63x
Working distance:110mm
transmitted illumination
3WED/30W Halogen, Brightness Adjustable
Reflective lighting
3WED/30W Halogen, Brightness Adjustable
epifluorescence illumination
3W blue/green/violet/ultraviolet light (choose according to requirements)
Host power supply
Input: AC voltage adaptation85V ~ 265V50/60Hz, output 12V
■ Product features:

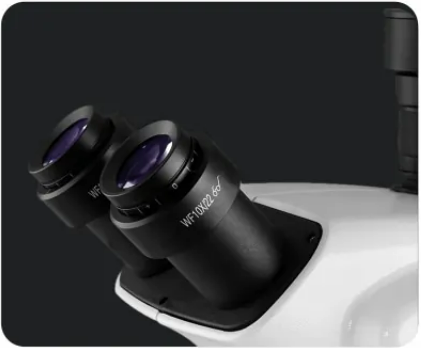

1. Hinged three-eye observation cylinder, inclined at 45 °. Interpupillary distance: 48-75mm field of view: Ф 33.8 ~ Ф 3.49

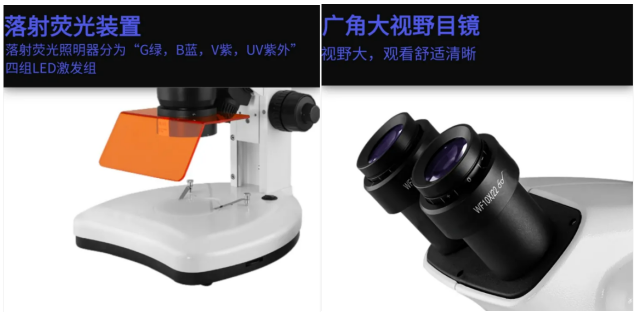

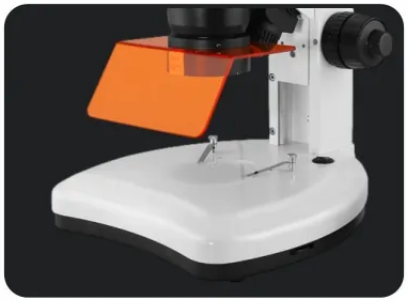

2. The epifluorescence illuminator is divided into "G (green), B (blue) V (purple) UV (ultraviolet)" four-color ED fluorescence excitation components. When in use, it should be reasonably selected according to the observed sample or fluorescent pigment to achieve good fluorescence microscopic observation function.

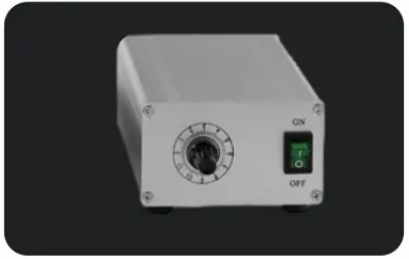

3. Fluorescent power box input: AC voltage 85V ~ 265V 50/60Hz, output 12V.

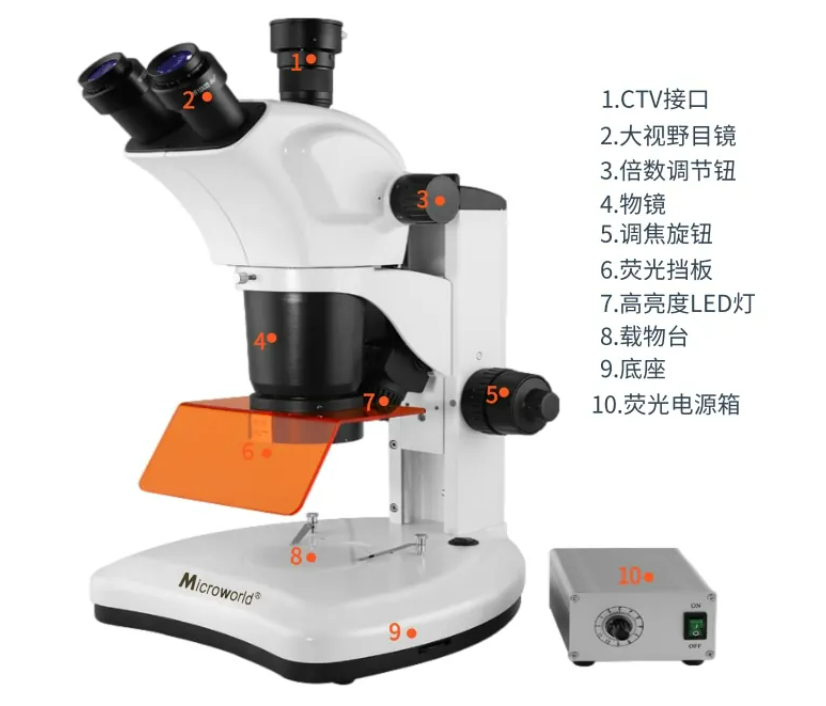

■ Component name:
Criminal technology
